Netvox R718F M LoRaWan Wireless Metal Reed Switch Open/Close Detection Sensor
Description

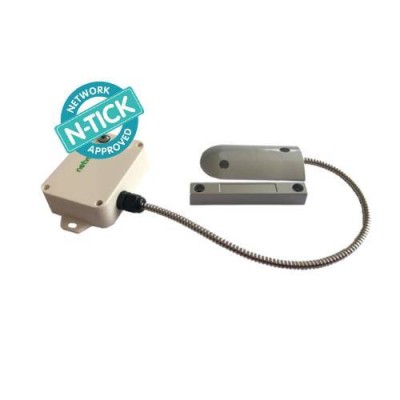

Netvox Wireless Robust Metal Reed Switch Open/Close Detection Sensor - R718F-M is equipped with a Robust Metal type reed sensor, which can be used to detect the status of the door and gate. Through the built-in wireless module, it can achieve wireless alarm and other functions. It uses the SX1276 wireless communication module.
Example Applications
Farm gate,
Doors and windows
Production line tracking
Objects to be detected open/close status
Key Features
Use Cases
Downloads
- Wireless range of 10 km (Depending on Line of Sight)
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Battery Life* : 5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)
- Battery life is determined by sensor reporting frequency and other variables
Buildings and Warehouses
Monitor door and window open / close status in commercial and industrial properties for security and access purposes
IT server rooms and closets
Monitor access to restricted areas auch as IT server rooms and closets and secured premises
Freezer and cooler doors
Know when freezer and cooler doors are left open to respond quickly to extended openings and ensure security of contents
Farm Gates
Detect opening and closure of farm gates and quickly respond to events that could impact the safety of farm assets and livestock
Use the download button below to download the following file:
- R718F-M Netvox Door Open / Close Sensor Data Sheet
